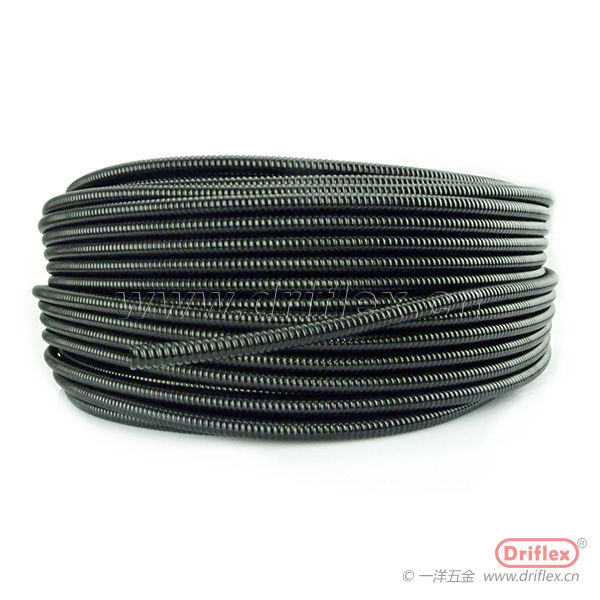

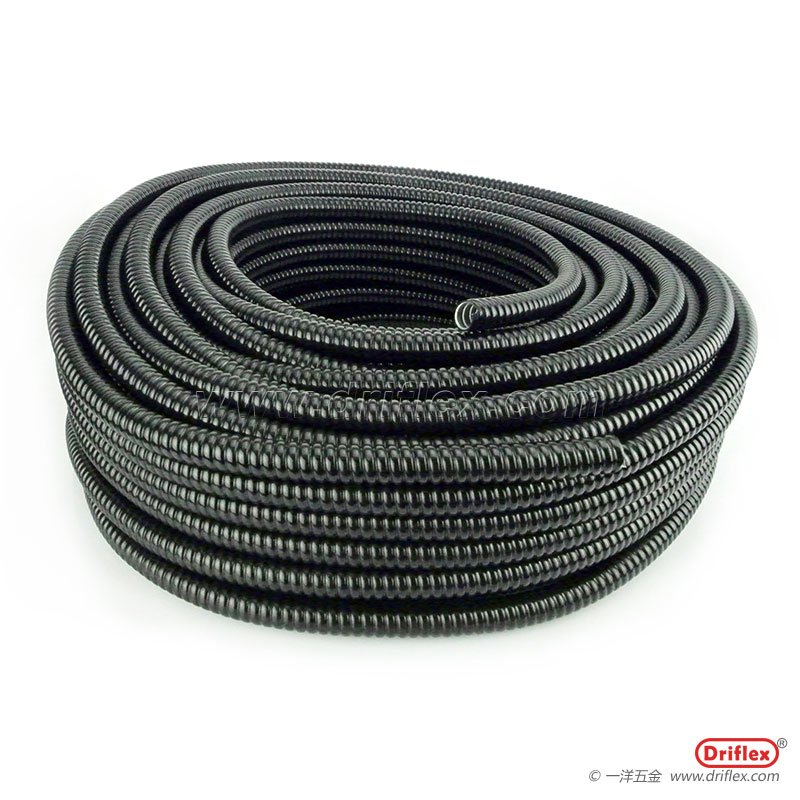

进店逛逛波浪型防水金属软管
Model: VJ-11S
Description:
不锈钢钢带制成,表面PVC被覆.
轻质结构,弯曲性能及防水性.
用于大量生产型设备和工具机械,或其他狭小空间之电器配管区域.
耐温范围从-20度至+105度.
PVC包塑，可选择黑色、灰色、橙色。
| Part No |
Nominal Size ISO (mm) |
Nominal Size US (inches) |
Min.inner (mm) | Max.outer (mm) |
Min. Bend Radius (mm) |
Length (M/coil) |
|---|---|---|---|---|---|---|
| VJ-10SS | 16 | 3/8" | 12.0 | 16.2 | 50 | 50 |
| VJ-11SS | 20 | 1/2" | 15.6 | 20.2 | 65 | 50 |
| VJ-12SS | 25 | 3/4" | 19.7 | 24.2 | 80 | 50 |
| VJ-13SS | 32 | 1" | 25.2 | 30.5 | 100 | 50 |
| VJ-14SS | 40 | 1-1/4" | 32.2 | 39.0 | 130 | 25 |
| VJ-15SS | 50 | 1-1/2" | 38.0 | 46.3 | 152 | 25 |
| VJ-16SS | 63 | 2" | 50.4 | 60.0 | 200 | 20 |
| VJ-17SS | 75 | 2-1/2" | 62.5 | 73.3 | 250 | 10 |
| VJ-18SS | 90 | 3" | 75.0 | 87.0 | 300 | 10 |
| VJ-19SS | 100 | 4" | 98.5 | 113.0 | 390 | 10 |
适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
