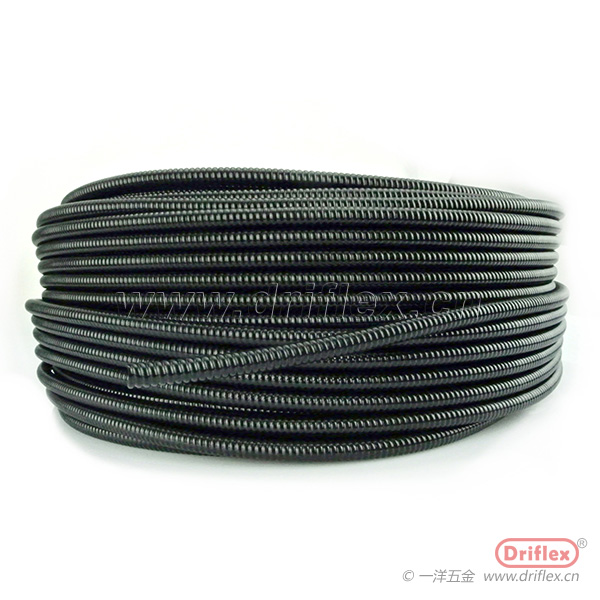

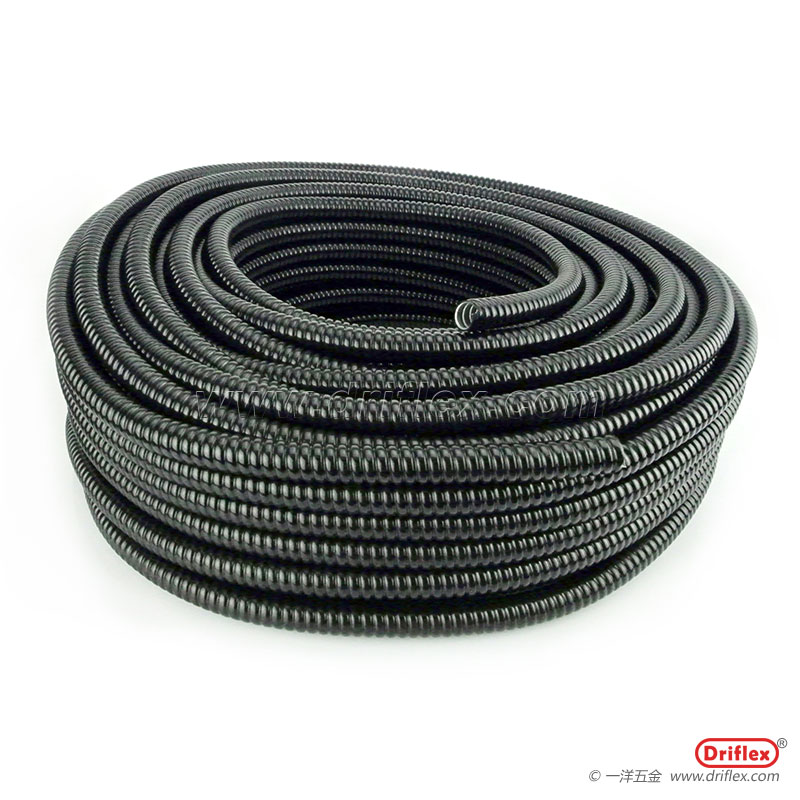

波浪型金属软管
Model: VJ-S or SS
Description:
波浪型防水金属软管
镀锌铁皮（S）或不锈钢带（SS）制成,表面PVC被覆.
轻质结构,弯曲性能及防水性.
用于大量生产型设备和工具机械,或其他狭小空间之电器配管区域.
耐温范围从-20度至+105度.

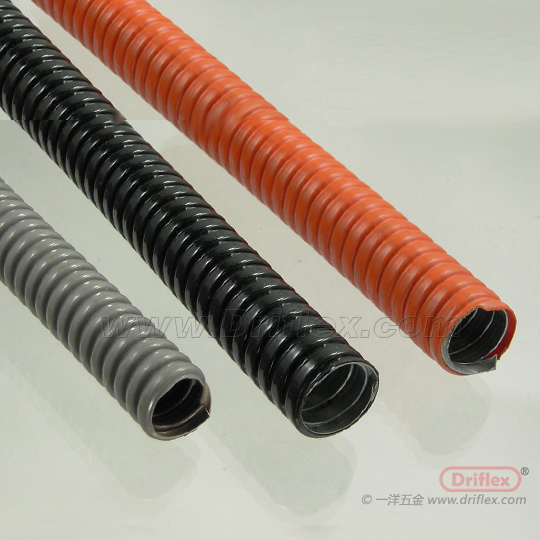

PVC包塑，可选择黑色、灰色、橙色。
Part
No
Nominal Size
ISO (mm)
Nominal Size
US (inches)
I.D.
(mm)
O.D.
(mm)
Min. Bend
Radius (mm)
Length
(M/coil)
VJ-10S/SS
16
3/8"
12.3 - 12.8
16.7 - 17.2
50
50
VJ-11S/SS
20
1/2"
15.8 - 16.3
20.2 - 20.7
65
50
VJ-12S/SS
25
3/4"
20.7 - 21.2
25.5 - 26.1
75
50
VJ-13S/SS
32
1"
26.0 - 26.6
31.6 - 32.2
100
50
VJ-14S/SS
40
1-1/4"
34.7 - 35.4
40.8 - 41.5
125
30
VJ-15S/SS
50
1-1/2"
40.0 - 40.6
46.6 - 47.2
150
30
VJ-16S/SS
63
2"
51.3 - 51.9
58.1 - 58.7
175
20
VJ-17S/SS
75
2-1/2"
63.0 - 63.6
71.8 - 72.4
200
10
VJ-18S/SS
90
3"
78.0 - 78.7
87.2 - 87.9
225
10
VJ-19S/SS
100
4"
101.6 - 102.6
111.2 - 112.3
275
5
Model: VJ-S or SS
Description:
波浪型防水金属软管
镀锌铁皮（S）或不锈钢带（SS）制成,表面PVC被覆.
轻质结构,弯曲性能及防水性.
用于大量生产型设备和工具机械,或其他狭小空间之电器配管区域.
耐温范围从-20度至+105度.
PVC包塑，可选择黑色、灰色、橙色。
|
Part
No
|
Nominal Size
ISO (mm)
|
Nominal Size
US (inches)
|
I.D.
(mm)
|
O.D.
(mm)
|
Min. Bend
Radius (mm)
|
Length
(M/coil)
|
|---|---|---|---|---|---|---|
| VJ-10S/SS | 16 | 3/8" | 12.3 - 12.8 | 16.7 - 17.2 | 50 | 50 |
| VJ-11S/SS | 20 | 1/2" | 15.8 - 16.3 | 20.2 - 20.7 | 65 | 50 |
| VJ-12S/SS | 25 | 3/4" | 20.7 - 21.2 | 25.5 - 26.1 | 75 | 50 |
| VJ-13S/SS | 32 | 1" | 26.0 - 26.6 | 31.6 - 32.2 | 100 | 50 |
| VJ-14S/SS | 40 | 1-1/4" | 34.7 - 35.4 | 40.8 - 41.5 | 125 | 30 |
| VJ-15S/SS | 50 | 1-1/2" | 40.0 - 40.6 | 46.6 - 47.2 | 150 | 30 |
| VJ-16S/SS | 63 | 2" | 51.3 - 51.9 | 58.1 - 58.7 | 175 | 20 |
| VJ-17S/SS | 75 | 2-1/2" | 63.0 - 63.6 | 71.8 - 72.4 | 200 | 10 |
| VJ-18S/SS | 90 | 3" | 78.0 - 78.7 | 87.2 - 87.9 | 225 | 10 |
| VJ-19S/SS | 100 | 4" | 101.6 - 102.6 | 111.2 - 112.3 | 275 |
5 |
|
|
|
|
|
|||
|---|---|---|---|---|---|---|
