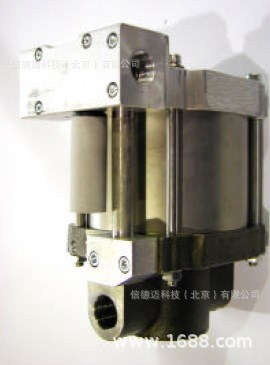

Maximator S60增压泵S60-05

现货Maximator S60增压泵






Technical Data规格参数:

Air drive pressure: 1-10 bar / 14,5—145 psi
Calculated Outlet
Pressure at an air drive of10 bar/145 psi
610 bar/ 8,845 psi
Pressure ratio: 1:61
Displacement volume/double stroke: 8.0 cm3/ 0.49 cu.inch
Connections:
Inlet:(only side inlet available) 1/2 BSP
Outlet: 3/8 BSP
Air drive: 1/2 BSP
Maximum operating tempreature: 60°C
Net weight: 9.1 kg


Material of construction: Top cap: Aluminium
Air cylinder: Aluminium
seal package: Polyurethane, Buna N
Pump Body: GGG50
HP Piston 1.4112 (hardened)
Approximate Dimensions: Height: 221 mm
Depth: 135 mm
Width: 175.5 mm
Special inlet and outlet ports, i.e.
NPT
S60-NPT
Special seal material to handle special fluids on request.
Available Accessories
Air control units for M series with filter pressure regulator, control pressure
gauge and shut off valve:
S60 with C1.5
To protect the pump against excessive outlet pressures or to limit the outlet
pressure, a safety valve can be fitted to the air control unit in the air drive
line:
S60 with C1.5/SVair (The required
outlet pressure has to be indicated.)
